Heavy Duty Construction
5mm thick folded mild steel frames & stands
All HD5 track is made from 5mm thick c-folded mild steel frames. Thanks to this the HD5 track can take up to 1000Kg UDL. The track allows pitch in multiples of 75mm and is modular allowing multiple lengths of the track to be linked together using the ADJ5 stand.
​
Lengths: 1.2M, 2M, 2.4M and 3M

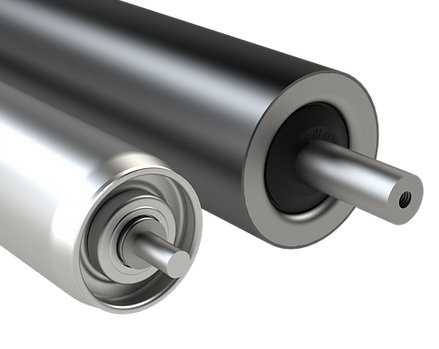

Roller Options
Medium-Heavy to Extra Heavy Duty Rollers Available
As standard we offer this track with our RGM range of rollers, these semi precision bearing rollers and sprung loaded into the track offering medium - high level loading.
However, if you require even more strength then you can opt for our IR range to be fitted, these larger welded rollers are fitted with precision bearings and bolted into the track.
.png)
Configuration Options
Adjustable height stands and roller positions
Depending on your needs rollers can either sit proud of the frame with with a pitch of your suiting. Heavy duty adjustable stands can also be added as well as end stops, power coating and guards, all these are available at request.
As all the tracks are also modular these can be linked indefinitely with our stands to create lengths of track to your requirements.
Specifications
Lengths: 1260mm / 2025mm / 2400mm / 3000mm
Width: up to 2000mm (on request)
Height: 500 - 1300mm
Material: Mild steel
Loading: Up to 1000Kg UDL
FAQ's
What is the maximum load capacity per roller/meter for the HD5 track?
The HD5 Heavy Duty Roller Track is designed for high-load industrial applications. Depending on the roller pitch selected, it can support significant distributed loads (UDL) up to 1000KG p/M. Please consult our technical datasheet or contact our team for the exact weight ratings for your specific setup.
​​
Can this roller track handle standard UK and Euro pallets?
Yes. The HD5 profile is ideal for pallet handling. It is compatible with standard UK (1200x1000mm) and Euro (1200x800mm) pallets, provided the roller pitch (spacing) is set correctly to ensure smooth movement.
​
What is the roller pitch (spacing), and can it be adjusted?
We manufacture the HD5 track with various pitch options to suit your load size. Pitches include 75mm and 150mm.
​​
Is the HD5 track available in stainless steel or galvanized finish?
Yes. Our standard finish is high-quality galvanized steel for corrosion resistance. If a heavier duty option is required we can fit with our IR4500 which also come zinc plated. We can offer unit handling stainless steel rollers however the frames would remain BZP.
​
Can these tracks be used in wet or outdoor environments?
Standard galvanized tracks offer excellent weather resistance. For permanent outdoor use or wet environments, we recommend fitting our IR5500 rollers which come with shaft seals to prevent and water ingress into the tube/bearing.
​
What is the frame material and thickness?
The HD5 utilizes a heavy-duty folded C section steel frame (5mm thickness), ensuring structural integrity and preventing bowing under maximum load.
​
Do you offer replacement rollers for this specific track profile?
Yes, we offer a range of rollers which can fit your roller track. You can order individual rollers directly from us to maintain your system without needing to replace the entire track.
​
What is the standard lead time for heavy duty tracks?
We pride ourselves on speed. Our standard lead time is typically fast, with many orders fulfilled within 7-10 working days. Urgent "breakdown" services are available for customers in the West Midlands and across the UK.
​
Do you manufacture these in the UK or are they imported?
We are proud UK manufacturers. All our roller tracks are produced at our facility in the West Midlands (Brierley Hill), ensuring higher quality control and faster delivery than imported alternatives.
​​
Can I collect my order directly from your factory?
Yes. You are welcome to collect your order directly from our works in the West Midlands to save on shipping. Please contact our sales team to arrange a convenient collection slot.
